Complete System Advantage: Why Mining Projects Need Both FM-Approved HDPE Pipes and Fittings
Underground mine fire protection systems allow zero margin for failure. A single weak joint can interrupt water supply at the critical moment, turning a controllable incident into a major loss of life and assets. Many mining projects currently accept a dangerous compromise: the pipe carries FM 1613 approval while the fittings do not. That single gap creates the weakest link in the entire system.
The hidden risk of pipe-only certification
A large number of manufacturers obtain FM 1613 approval only for the pipe. Elbows, tees, reducers and flanged spools remain ordinary, uncertified products. These fittings are precisely the points of highest stress and the most common locations for leakage or failure under surge pressure. When a fire occurs, an uncertified fitting can fail first, instantly reducing the system below its design flow and pressure. Safety auditors and insurance underwriters increasingly reject or penalise systems that cannot demonstrate full-system FM approval.
What FM 1613 actually requires
FM Approvals Standard 1613 covers both polyethylene pipe and fittings for underground fire protection service. Certification includes long-term hydrostatic strength, pressure performance, manufacturing quality control and continuous factory surveillance. Only when pipe and fittings are both listed in the official FM Approval Guide does the system qualify as a complete, verifiable FM-approved solution. This complete listing also satisfies the system-integrity expectations of NFPA 24 for private fire service mains.
The complete-system advantage of dual certification
When every component carries the same FM 1613 approval, the fused pipeline becomes a true monolithic system with no uncertified weak points. Pipe and fittings share identical material grade, pressure rating and performance history, eliminating differential expansion or strength mismatches. Insurers and safety auditors receive a single, coherent set of certificates, which typically results in lower premiums and faster audit clearance. Procurement is simplified: one supplier provides the entire certified package, removing the liability disputes that arise when multiple vendors supply mixed components.
Puhui Industry dual FM 1613 certification

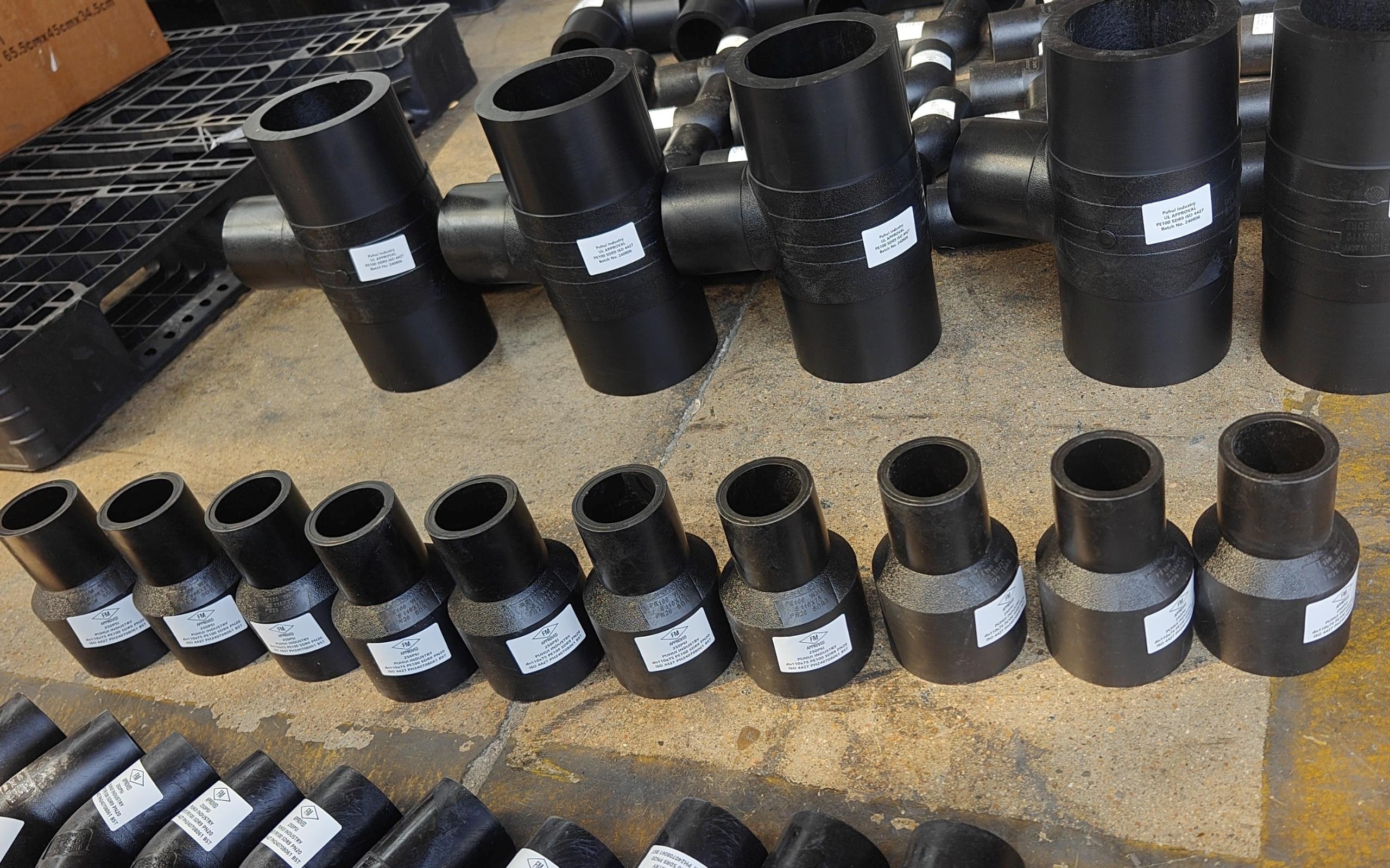

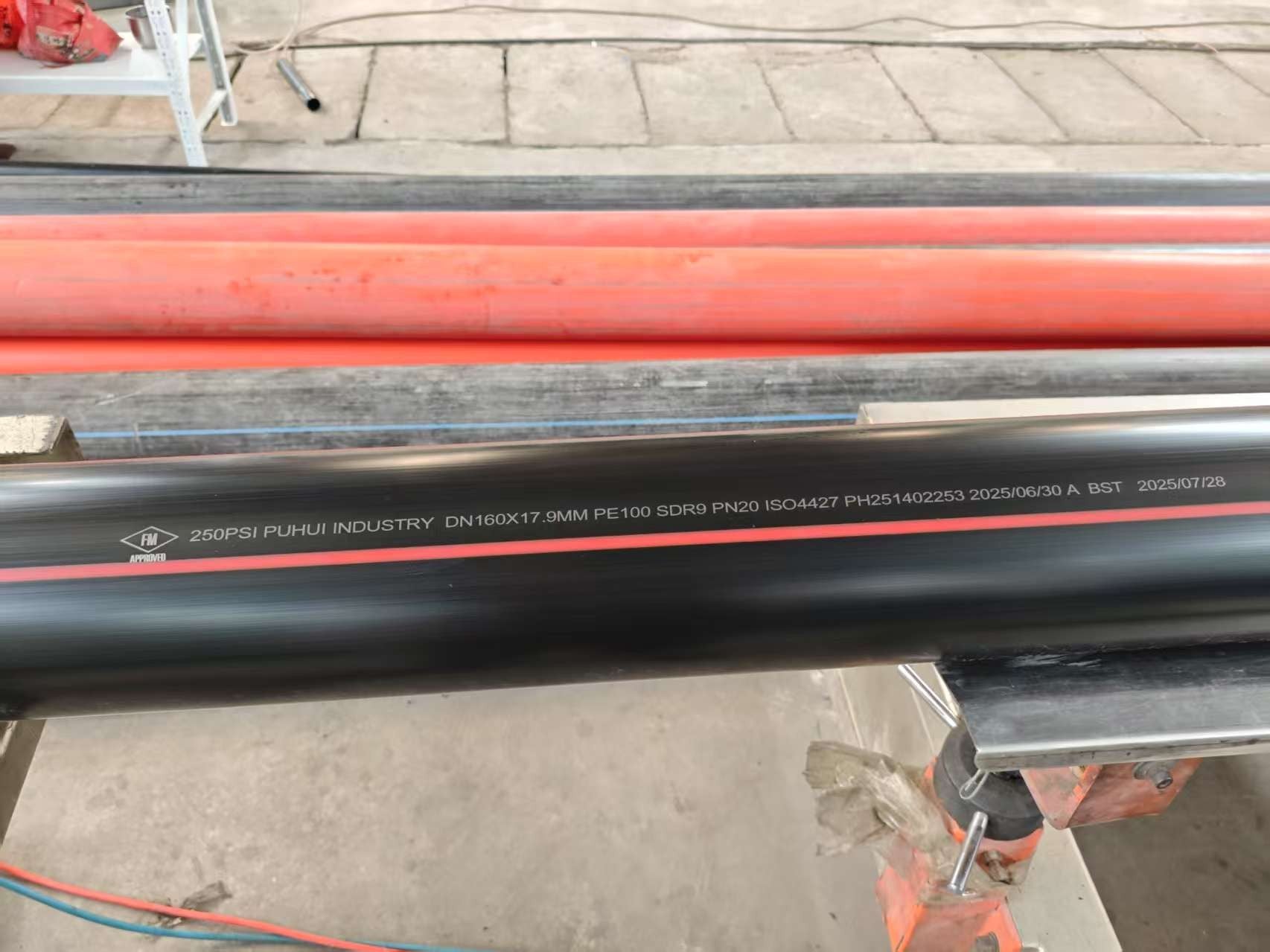

Puhui Industry is currently the first manufacturer in mainland China to hold FM 1613 approval for both HDPE pipe and fittings. Approved products cover diameters from 110mm to 630mm (3in–24in) in SDR 11 (200psi) and SDR 9 (250psi). The full range of moulded fittings, elbows, tees, concentric reducers and flanged spools carries the same certification and appears in the official FM Approval Guide.
These dual-certified systems have already been supplied to underground mine fire networks and industrial fire mains in Indonesia, the Philippines, Singapore, Chile, Ecuador, the US, Canada, Argentina, Brazil, Bolivia, France, Italy and additional countries.
How to verify a complete FM-approved system
Request the FM 1613 certificates for both the pipe and every fitting type. Cross-check each certificate number and product scope directly in the FM Approval Guide. Confirm that fittings match the pipe’s pressure class. Obtain written confirmation from the project’s insurance underwriter and safety auditor that a full-system FM listing is accepted before placing the order.
Selection and installation recommendations
Specify only dual-certified pipe and fittings. Select the SDR class according to maximum working pressure plus surge, never below the 150 psi minimum required by NFPA 24. Use qualified fusion procedures and maintain complete joint records. Engage the insurer and auditor early to lock in material acceptance.
Conclusion
A fire protection system is only as strong as its weakest component. Pipe-only FM certification leaves that weak point exposed. Dual FM 1613 certification of both pipe and fittings removes the vulnerability, satisfies insurers and auditors, and delivers a genuinely reliable underground fire main.
Check the certification status of the fittings on your current or upcoming projects. For complete dual-certified FM 1613 systems, technical data and project support, please contact Puhui Industry.
