SmithCo Mfg., Inc of LeMars, IA is the leading North American manufacturer of side-dump trailers for the mining industry. Haul road-proven trailers range from 60-100 metric ton capacity and they can be pulled in A-Train or B-Train configurations up to 200 metric ton.

SmithCo has been supplying on-highway trailers for the mining industry since 1993. Whether it was hauling new ore or previously processed ore to be reprocessed with newer technologies the SmithCo trailers were hauling more payload, safer and with greater reliability.

Off-road (haul road) trailers for mines

In 2001, SmithCo began developing off-road (haul road) trailers specifically to be used on mine sites. These trailers were designed from the ground up for this application; they were not on-highway trailers with heavier components. The Mine Series trailers are not intended to replace haul trucks grinding up out of the hole.

Satellite mine transportation solutions

But more and more mines are getting into a distance haul issue where material needs to come in from satellite mines to the main processing or shipping location. The speed, cost effectiveness and efficiencies of a truck-trailers(s) combination can be a very good alternative process.

Mine series trailers and dollies

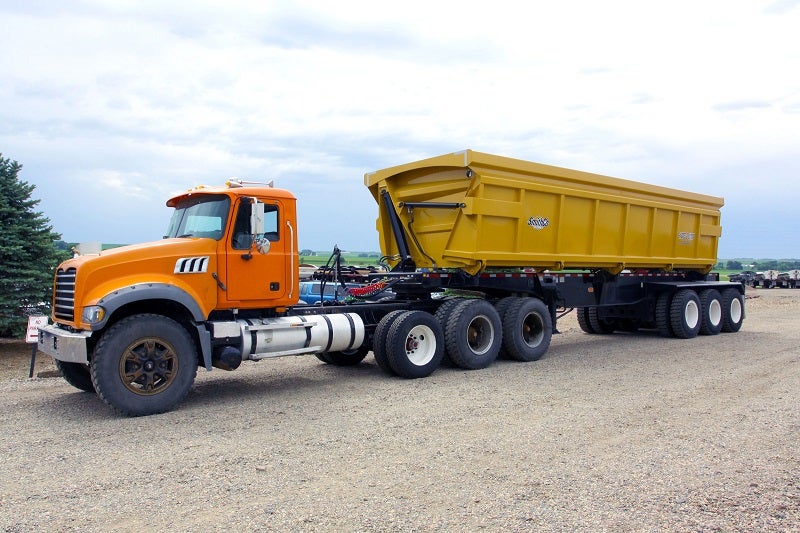

SmithCo offers two tub styles for the Mine Series trailers. The traditional round bottom bathtub style tub raises and side-dumps the material out over the top tub rail. This tub style is water-tight and can dump the material off of either side of the trailer.

The tipper style tub is a more rectangular shape with a door that opens to the side for discharging the material. This tub style allows for more cubic volume and up to 100t capacity in a single tub. The door discharges the material farther away from the trailer which can be critical with the increased cubic capacity.

These two tub styles cover a wide range of payload types.

Ore mine transportation

You’re always going forward with a side-dump trailer, no need to waste time backing into the pile to dump. Depending on the application and payload the material can even be dumped while moving (windrow the product out).

SmithCo offers the Mine Series Trailers in tandem-axle, tri-axle and quad-axle configurations. These trailers can be combined with SmithCo converter or jeep dollies to pull individual trailers in train.

Longhaul mine trailers

The important criteria for the design of these trailers for a particular project is the density of the payload, distance of haul, road conditions, power unit limitations and desired payload weights.

Standard specifications for the Mine Series trailers are:

  • Removable/replaceable 3 ½” Kingpins
  • Spherical bearings in all tub pivots
  • Fabricated T-1/100k steel frames
  • AR400 or Hardox Tub skin
  • 3500 PSI hydraulic system
  • 30,000lb-55,000lb axles
  • Sealed wiring harnesses
  • Arctic grade components available
  • Tarp systems available
  • Automatic greasers

Side-dump trailers speed and safety

Depending on tub style the single stage lifting cylinders will vary from 6″ to 7″. These quick acting cylinders are cost-effective, maintenance friendly and stronger than telescopic cylinders.

Because 80%+ of the payload shelves off from the top down when being side-dumped, very little of the payload slides out of the tub. This greatly reduces tub wear and product hang-up that occurs in end dump trailers. Tub height when dumping is also much lower than other trailer designs.



SmithCo Side Dump Trailers

The mining industry relies on powerful haul trucks, but they are expensive when you consider the initial cost, their reliance upon hard surface roads and the continual road maintenance necessary to keep them performing.

The Quest for Quality Never Stops

When it comes to side dump trailers, quality is key. SmithCo’s intensive quality control process ensures that their trailers work the way they should, every time.

SX Series Side Dumps

The SX Series is the most versatile of our product offerings because there is nothing it won’t haul. When it comes to hauling and dumping, no two customers’ needs for side dump trailers are exactly the same. That’s what makes our SX series so appealing.

Side Dumps for Waste Hauling

SmithCo side dump trailers have been working in the waste hauling industry for many years. From agriculture to construction to demolition, SmithCo side dumps move more waste than all of our competitors combined.

Mine Trailers for Adverse Environments

SmithCo mine trailers have been used in the mining industry for many years because of their superior stability, faster cycle times, and easier unloading capabilities.

Trade-In for a New SmithCo Side Dump

Whether you’re moving up to a new model, or no longer need your current trailer, SmithCo can help you navigate through the used side dump trailer trade-in process.

Side-Dump, End-Dump and Belly-Dump Trailers

When deciding what type of trailer is ideal for application, it is important to understand the engineering behind them; if there have been constraints in operations due to trailer limitations, there may be a side-dump that opens new doors for you.
