Rogers Brothers On and Off-Highway Lowbed Semitrailers for Mining Haulage
Rogers Brothers is a leading manufacturer of on- and off-highway lowbed semitrailers. Located in Albion, Pennsylvania, US, Rogers has been designing and manufacturing heavy-duty trailers for more than 100 years. For the open pit mining industry, we offer trailers with capacities ranging from 68t (75st) to 200t (220st).
Trailers can be fixed gooseneck rear loading or detachable gooseneck front loading depending on the needs of our customer. In addition to the mining industry, we also design and manufacture trailers used in the construction, paving and heavy haul industries, to name a few.
All Rogers trailers are constructed using carrying members designed and fabricated with high-strength steel in order to provide maximum capacity and durability while minimising operating weight. When properly operated and maintained, Rogers trailers have been shown to provide decades of dependable service to our customers.
Fixed gooseneck off-highway mining trailers
Combining durability with convenience, Rogers fixed gooseneck mining trailers are especially useful for hauling medium-sized mining equipment (up to 115t) for longer distances. Hydraulically-operated rear ramps provide a simple, yet effective, means to load and unload various types of equipment. A variety of deck lengths and widths are available to meet each customer’s specific requirements.
Pre-designed models are available in capacities from 85t (94st) to 115t (127st). A severe duty cantilever suspension equipped with high-capacity, low-profile tires provides a durable, stable ride and minimises tire replacement and maintenance costs.

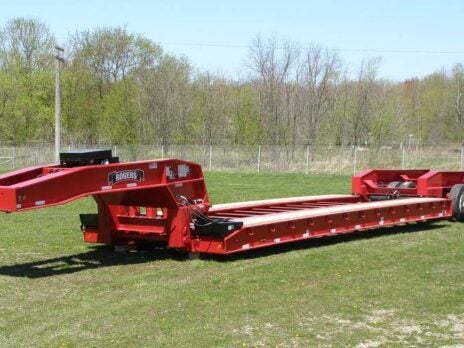

Detachable gooseneck off-highway low loaders
Equipment that requires a more gradual incline for loading will work well with Rogers’ detachable gooseneck mining lowboy trailers. Loading angles of as little as ten degrees can be provided by reducing the depth of the carrying members at the front of the trailer frame. The use of front-folding ramps can further facilitate the loading and unloading of machines.
The gooseneck is operated by heavy-duty hydraulic cylinders which push off the ground to detach and reattach from the front of the trailer frame. This simple design is the most durable and efficient method available to operate the detachable gooseneck. A gooseneck design that does not contact the ground to operate is also available when required.
Shims can be added to both the gooseneck and detachable rear frame of the trailer to raise the trailer bed, providing additional ground clearance. A support jack operated by hydraulic cylinders allows the gooseneck to be carried by the tractor frame when detached from the trailer deck.
Trailers of this design are available in capacities from 70t (77st) to 120t (132st) in a variety of lengths and widths.
Detachable gooseneck heavy-haul trailers for on- or off-highway
Rogers also offers many trailers that provide excellent hauling capabilities within the mining industry while also meeting the specifications for over-the-road hauling, especially in North America and countries with similar transportation regulations. The capacities for these trailers range from 60t (66st) to more than 90t (100st).
To conform to transportation regulations, these trailers are generally narrower and longer than their off-road counterparts. Additional axles may be required to spread the load over a greater distance to comply with national bridge formula requirements. Jeep dollies and/or booster axles may also be needed to meet these requirements.
Custom design and engineering
At Rogers, we offer a number of pre-designed trailer models but we also understand the hauling needs of each customer are often unique and can require custom solutions. Sometimes a custom trailer specification may be as simple as adding additional length to an existing trailer design. Other times a customer may want a trailer designed to carry a specific machine or be towed by a specific tractor.
Our sales and engineering personnel will work with the customer to gather information and design the trailer that meets those specifications. Along with a price and specification quote, a trailer proposal drawing is often provided. This drawing can include critical dimensions, optional equipment, axle and kingpin loads and even a specific machine loaded on the trailer.
We welcome the opportunity to work with you to provide the best trailer for your hauling needs.
Products and Services

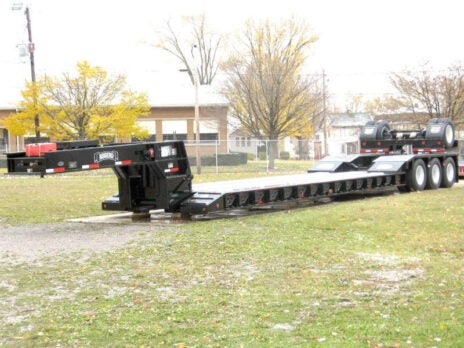

100-ton Detachable Rear Trailer
This high-performance 100-ton ROGERS trailer has a detachable ground-engaging ram foot gooseneck, a detachable rear frame, and a 'flipped' removable 4th axle.

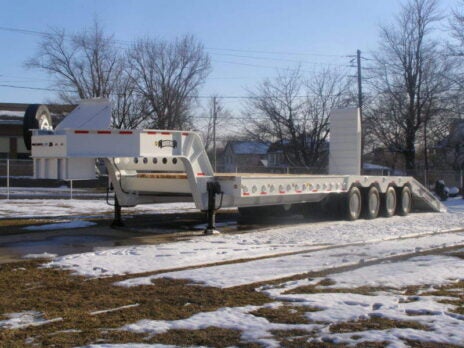

121-ton Fixed Gooseneck Trailer
This fixed gooseneck trailer was built for use in a copper mine in South America.

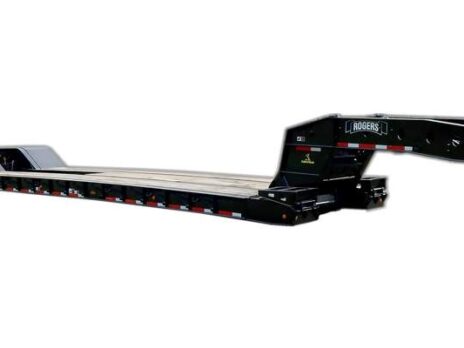

This trailer series from ROGERS features the CobraNeck, our newest gooseneck design that offers enhanced versatility and ease of operation.
88-ton Detachable Gooseneck Trailer
This detachable gooseneck trailer has a hauling capacity of 88 tons concentrated in 1/2 the deck length.

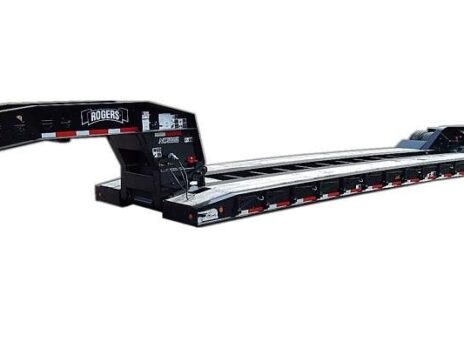

ROGERS sets the standard for high-performance trailers with the Ultima Series of detachable gooseneck low-bed trailers.
Custom-Built Detachable Gooseneck Trailers for Offroad Use
For more than 110 years, Rogers Brothers Corporation has been designing and building superior quality trailers for our customers around the world.
Custom-Built Fixed Gooseneck Trailers for On-Road Use
Rogers' custom-built gooseneck trailers are available in 88 to 130+ US tonne capacities (80 to 118 metric tonnes) and deck lengths from 16ft to 48ft long (4.9m to 14.6).
