Outokumpu has patented a method for manufacturing a crash frame for electric vehicle battery compartments. The process involves using metallic sheets to create a deformation space that protects battery modules during impacts. The crash frame includes wall components and is designed for easy installation of the battery housing. GlobalData’s report on Outokumpu gives a 360-degree view of the company including its patenting strategy. Buy the report here.

Smarter leaders trust GlobalData

Report-cover

Data Insights Outokumpu - Company Profile

Buy the Report

Data Insights

The gold standard of business intelligence.

Find out more

According to GlobalData’s company profile on Outokumpu, Extraction by leaching was a key innovation area identified from patents. Outokumpu's grant share as of March 2024 was 62%. Grant share is based on the ratio of number of grants to total number of patents.

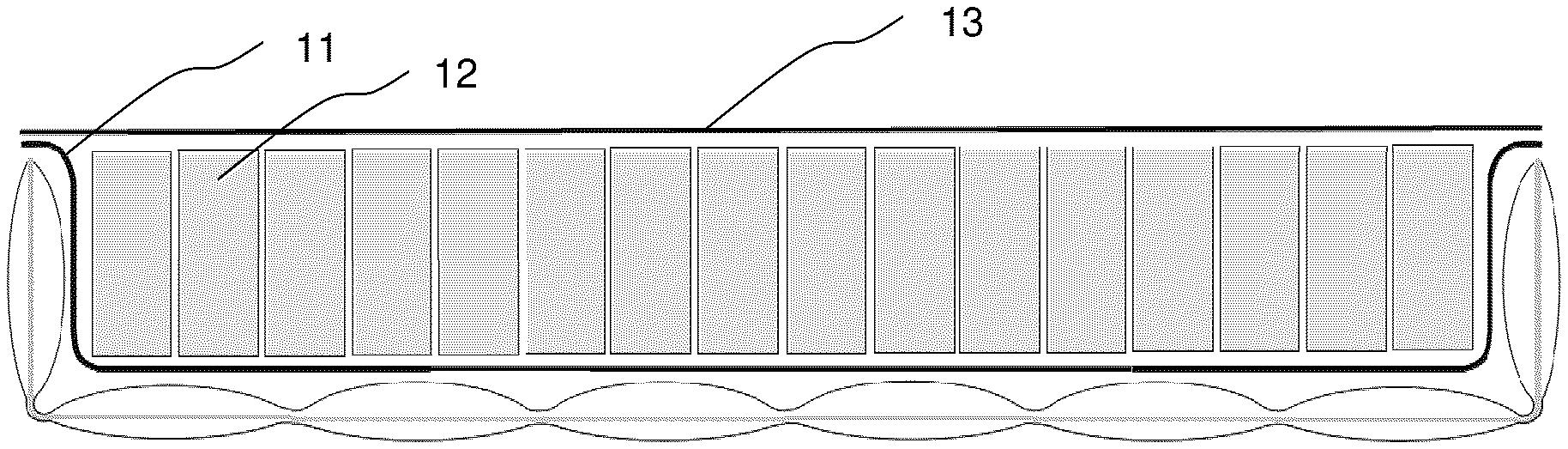

Manufacturing method for crash frame of battery compartment

Source: United States Patent and Trademark Office (USPTO). Credit: Outokumpu Oyj

A recently granted patent (Publication Number: US11967727B2) discloses a method for manufacturing a crash frame for a battery compartment in electric drive vehicles. The method involves providing metallic sheets, joining them together, introducing a medium between the sheets, applying pressure to cause deformation, and producing a crash frame with wall components and deformation spaces. The crash frame is designed to accommodate a battery housing and includes features for thermal management and protection, such as indentations for sealing compounds and insulating materials in the deformation spaces.

The method includes steps such as bending the joined sheets along bend lines to form wall components, joining the wall components to create the crash frame, and filling the deformation spaces with insulating materials. The metallic sheets, typically stainless steel, can have different thicknesses to define the inside surface of the crash frame. Additionally, the crash frame can be constructed with multiple wall components to enhance thermal management and protection for the battery compartment. The innovative manufacturing process allows for the creation of a robust crash frame that provides structural support and safety features for the battery compartment in electric drive vehicles, ensuring efficient thermal management and protection during operation.
