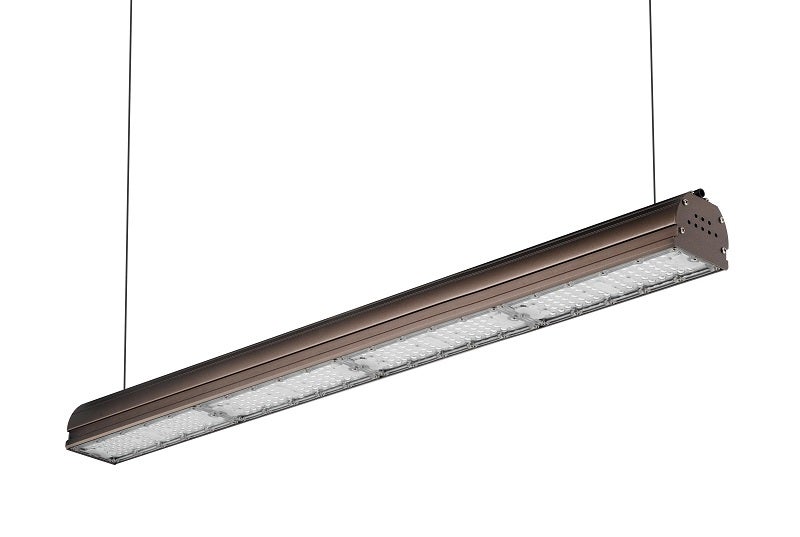

Module LED Linear Lighting Data Sheet
LED linear lighting

Shenzhen’s module LED linear lighting is widely used in commercial, public and recreational environments, as well as other indoor or outdoor applications.

Specifications:

  • Power: 160W
  • Input voltage: AC85~300V 50/60H
  • LED: OSRAM 3030 LED LM-80 SDCM<3
  • Driver: driverless technology, so no driver required
  • Color temperature: 2,700 / 3,000K / 4,000K / 5,000K / 6,000K
  • CRI: 75~83Ra
  • Total lumen: 130lm/W (CCT=4000K)
  • Beam angle: 30 / 60 / 90 / 120 x 90 / 150 x 80 Asymetric
  • Power factor: >0.95
  • IP/IK Grade: IP65 / IK10
  • Lamp lifespan: 50,000h
  • Certificate: CE, RoHS and IEC62471
  • Ctn size (mm): 475 * 325 * 275
  • Pcs/Ctn: 2pcs
  • Weight/Ctn (kg): 10.8kg
