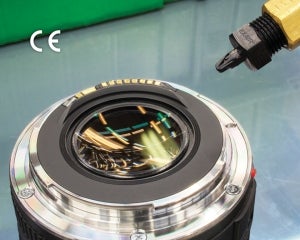

EXAIR’s new PEEK Atto Super Air Nozzle™ has been engineered to produce the highest performance attainable from a tiny nozzle. It delivers the smallest, most precise blowoff with an efficient, high volume, high velocity airflow. The overall length of the air nozzle measures only 12.7mm (0.50 inches) with a diameter of only 4mm (0.16 inches), permitting installation in tight spaces. Its PEEK plastic construction provides non-marring protection to production items as well as resistance to damage from harsh chemicals. The PEEK Atto Super Air Nozzle is suitable for blowoff, cooling and drying applications located in general industrial or corrosive environments.
The Model 1108-PEEK Atto Super Air Nozzle provides a narrowly focused air pattern. High amplification of airflow and a strong blowing force of 56.7 grams (2.0 ounces) are achieved with minimal air consumption of 2.5 SCFM at 80 PSIG. Safe operation is assured since the airflow of the Atto Super Air Nozzle cannot be blocked, which meets the OSHA standard for dead-end pressure 29 CFR 1910.242(b). Sound level is very low at 58 dBA and meets OSHA noise requirement 29 CFR 1910.95(a), as well as being CE compliant.
Available from Compressed Air Australia, the PEEK Atto Super Air Nozzle is designed to easily replace existing wasteful nozzles or open pipes. The compressed air inlet is male M4 X 0.5. The Atto Super Air Nozzle is also available in Type 316 Stainless Steel and with NPT or BSP threading. For further details, click here.
