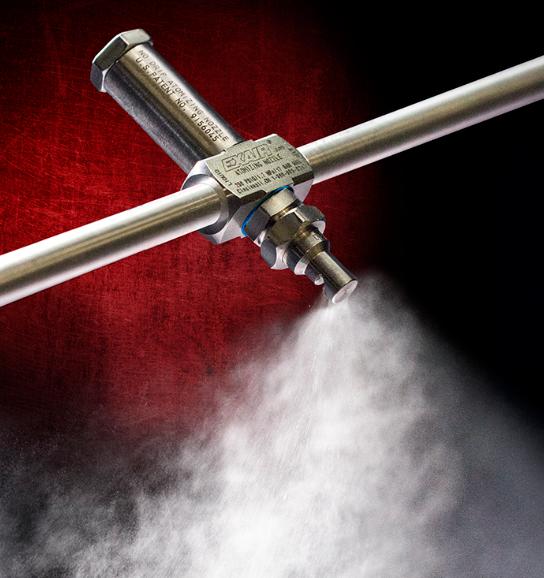

EXAIR’s patented 0.25in No Drip Internal Mix Deflected Flat Fan Atomizing Spray Nozzle atomises fluid and sprays at a right angle to the nozzle orientation.
This allows spray to be placed precisely where it is needed when mounting and work areas are limited. This new nozzle works in the same way our standard atomising nozzles do, but has the added benefit of positively stopping liquid flow when compressed air is shut off.
When spraying any type of liquid, post-spray liquid flow can cause big problems. Unwanted drips can ruin product function on sealing or mating surfaces. Drips can also ruin the appearance of painted or coated finishes. In addition, excess liquid flow wastes precious resources, such as expensive coatings, chemicals or water. EXAIR’s No Drip Atomizing Nozzles are ideal where no post-spray drip is permissible. When the compressed air supply is shut off, the No Drip Nozzles positively seal off the flow of liquid eliminating the possibility of drips.
EXAIR’s No Drip Internal Mix Atomizing Nozzles are available in five patterns: narrow angle round pattern, wide angle round pattern, flat fan pattern, deflected flat fan pattern and 360° hollow circular pattern. They are for pressure fed applications that don’t require independent air and liquid control. Internal mix, external mix, no drip external mix, siphon fed and no drip siphon fed are also available in 0.25in or 0.5in.
Applications include painting, coating, rinsing, cooling, quenching, wetting (moistening), humidification, and dust control. The compact Atomizing Nozzles are fully adjustable to minimise air and liquid consumption and have interchangeable liquid and air caps. All No Drip Liquid Nozzles are CE compliant and conflict mineral free.
