Tenova Delkor

Equipment Specialist: Filtration, Thickening, Flotation, Screening and Process Design

Tenova Delkor, part of Tenova Mining & Minerals, is an industry specialist in solid / liquid separation and mineral processing applications for the minerals, chemical and industrial markets. Offering comminution, flotation, sedimentation, filtration, screening, and gravity separation systems, Tenova Delkor services range from test work, process trade-offs and flowsheet design, to installation, commissioning and aftermarket support.

Process questionnaire

We recommend you complete Tenova Delkor’s process questionnaire to find out what solid liquid separation process would be best suited for your mining project.

  • Upload your datasheet
  • Download our datasheet template
  • Complete datasheet online

Filtration – horizontal belt filters, ceramic disc filters and filter presses

Tenova Delkor prides itself on providing a wide variety of filtration equipment, from mainstays such as Delkor belt filters, Delkor ceramic disc filters and Delkor filter presses, to the lesser known Delkor polishing ceramic filters, Delkor bond indexing filters, Delkor gravity sand filters, and Delkor tipping pan filters.

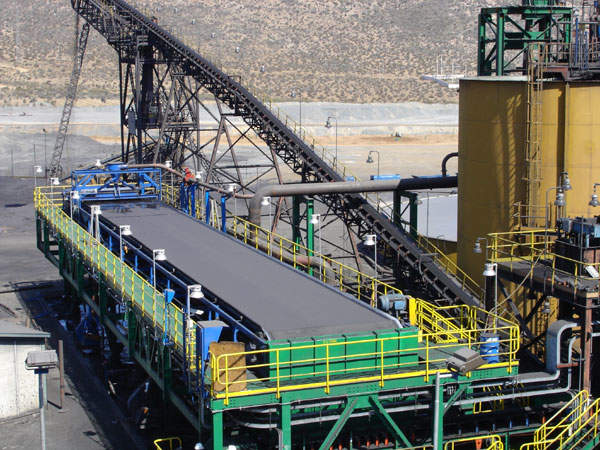

Horizontal belt filters

Delkor belt filters are efficient solid / liquid separation units suitable for dewatering a wide range of materials such as mineral sands, iron ore and lead zinc concentrates.

Delkor belt filters are efficient solid / liquid separation units suitable for dewatering a wide range of materials such as mineral sands, iron ore and lead zinc concentrates.
The Delkor High-Rate Thickener is a proven performer, having been applied to minerals, chemical, water treatment and waste water industries.
Delkor BQR Round-Tank Flotation Cells achieve optimum operation through purpose-designed levels of solids suspension, air rate adjustment, easy froth-cone positioning and a stable pulp-froth interface.
The Delkor Belt Linear Screen is widely used by the mining industry for the removal of tramp material from fine mineral or chemical slurries.
The Delkor Filter Press has been designed for optimum solution recovery and maximum solids dryness.

Ceramic disc filters

Tenova Delkor, in conjunction with Bakor Filter Ceramics, is able to offer ceramic disc filters with a variety of applications in both ferrous and non-ferrous industries.

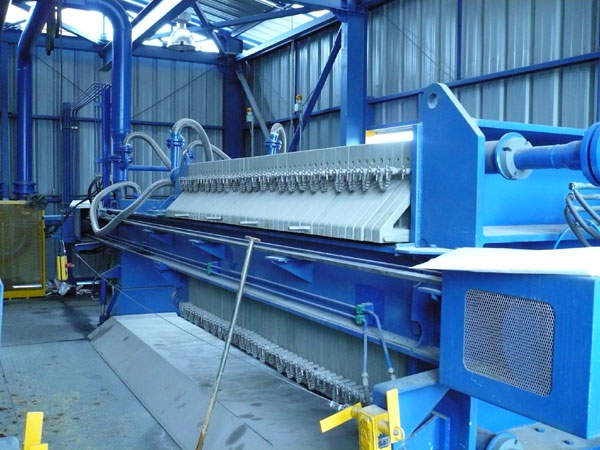

Filter presses

The Delkor filter press has been designed for optimum solution recovery and maximum solids dryness. The filters are available from 1m² to 350m² and operate at pressures up to 25bar.

Sedimentation – thickeners

Tenova Delkor supplies its clients with a wide variety of thickening equipment, with designs of up to 100m in diameter.

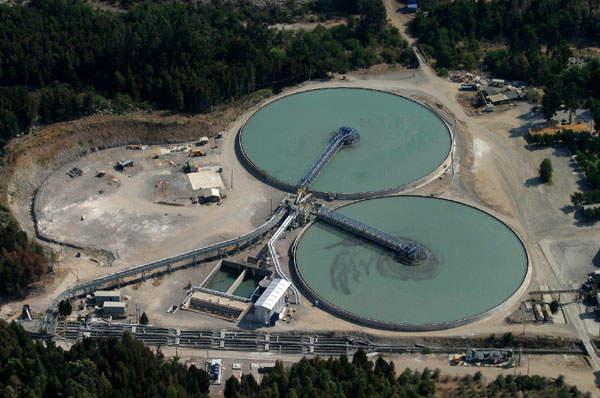

High-rate thickeners

The Delkor high-rate thickener is a proven performer, having been applied to minerals, chemical, water treatment and waste water industries. Thanks to its applicability and low capital cost, the Delkor high-rate thickener can meet most sedimentation needs.

Paste thickeners

The Delkor paste thickener incorporates the knowledge and experience of over 30 years in providing thickeners for the mining industry, applying this knowledge to the extreme mechanical and process requirements needed when dealing with high rheology underflows.

Ultrasep thickeners

The Delkor Ultrasep concept allows for a very high rise rate reducing the required thickening area significantly, affording a far more cost-effective thickener. Delkor’s Ultrasep thickener has no moving parts, virtually eliminating maintenance.

High-density thickeners

The Delkor high-density thickener was a result of clients requiring higher underflow densities and improved water recoveries without extra cost in pumping system for transport. By increasing the height of the mud bed within the thickener, Delkor was able to achieve densities that were not possible in a standard high rate thickener.

Conventional thickeners

The Delkor conventional thickener is often used when the use of flocculant is problematic or expensive. The large area and low rise rates allow for particles to settle with little or no flocculant addition.

Screening – Delkor belt linear screens

The Delkor belt linear screen was developed to solve a major problem in the CIP/CIL process. It is capable of screening between 150µm and 2,000µm, and is widely used by the mining industry for the removal of tramp material from fine mineral or chemical slurries.

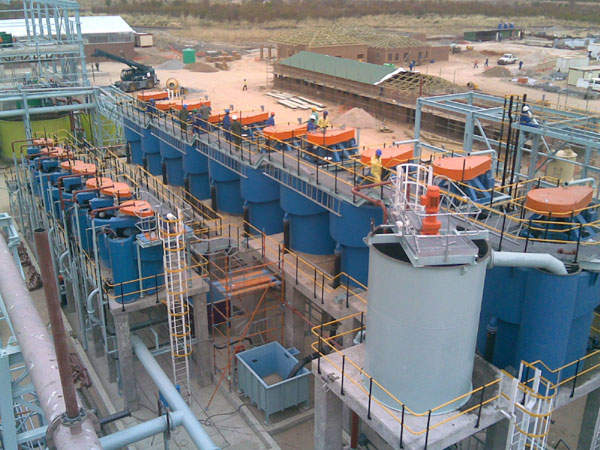

Flotation cells

Delkor BQR round-tank flotation cells achieve optimum operation through purpose-designed levels of solids suspension, air rate adjustment, easy froth-cone positioning and a stable pulp-froth interface. The cells are used to process copper, zinc, platinum group metals, phosphates and graphite slag and effluents.

Gravity separation – Delkor APIC jig

The Delkor APIC jig is a gravity separator which separates valuable products from waste material, effectively producing clean, saleable products.

Process trade-offs and flowsheet design

Tenova Delkor’s bench or pilot-scale test programmes can be conducted either on site or in one of the company’s local laboratories in your area.

Tenova Delkor can conduct test work on any of its equipment range in order to provide clients with the necessary process data for their plant design. As part of Tenova Delkor’s test work report, experienced process engineers not only identify equipment and process options but also can provide process, capital and operating data to permit trade-offs of process alternatives.

Aftermarket support

Starting from the initial contact and through planning, design, production, delivery, installation and final commissioning, Tenova Delkor customers can gain access to a range of field services provided by well trained and highly experienced staff.

Tenova Delkor field-service programmes are designed to ensure that clients’ Tenova Delkor equipment continues operating as required at a high availability; some of Tenova Delkor’s site engineers have been with the company for more than 20 years. Services range from routine technical audits to full service contracts for planned maintenance or major on-site overhauls.

Tenova Delkor workshops

Tenova Delkor’s supply chain team oversees the production and quality control of Tenova Delkor equipment and key components through their own workshops based in India, Bangalore (16,000m², 9,000m² covered), and China, Tanggu – Tianjin (11,000m² covered workshops). Both workshops have staff trained in the manufacturing of Tenova Delkor products, and quality of production is guaranteed through Tenova’s worldwide quality assurance programme managed by qualified product specific personnel to ensure a high standard of delivery.

Central Eyre Iron Project, Eyre Peninsula

Iron Road fully owns the Central Eyre Iron Project on the Eyre Peninsula of South Australia. The project, set to become Australia’s biggest magnetite project, includes the construction of a $4bn integrated supply chain consisting of a mine, rail, and a deepwater port operation on the Eyre Peninsula.

Tenova acquires Bateman Engineering

Tenova, a worldwide supplier of advanced technologies and equipment for the iron, steel and mining industries, has announced the acquisition of Bateman Engineering, a leading equipment supplier and engineering house for the mining industry.

13 January 2012

Flotation: Advantage Circular Cells

From its beginnings in the first decade of this century, flotation has gradually moved to a predominant role in mineral separation.

13 January 2012

Delkor Floats Above the Rest in Australia

Delkor Asia Pacific, a sister company of Delkor Sub-Saharan Africa (DSSA), was commissioned by GR Engineering Services to supply and deliver flotation cells as part of a larger upgrade of Xstrata's Cosmos Nickel mine in Western Australia.

13 January 2012

Delkor India Wins its Largest Thickener Contract

Delkor is supplying two 100m diameter thickeners for Iron Ore Tailings and two 20m diameter thickeners for iron ore concentrate for their upcoming 4.1 MTPA integrated Pellet plant at Nashwausk which is approximately 24 km west of Hibbing, Minnesota, USA.

13 January 2012

Delkor Belt Filter Replaces Dewatering Centrifuges in Indian Coal Preparation

Delkor India has recently commissioned India's largest horizontal belt filter for coal filtration at West Bokaro Coal washery III of Tata Steel. The Horizontal belt filter is also the world's largest HBF with effective filtration area of 145 m² for coal slurry. Washery II at West Bokaro was

25 April 2010

Delkor Signs Contract with Bakor Filter Ceramics

Delkor Technik has signed a representatives agreement contract with Bakor Filter Ceramics for the sale of Bakor products in the Delkor Global sales territories. Bakor offers sophisticated technology in the use of ceramic membranes for filtration, and partnered with Delkor's in depth fil

25 April 2010

Sepon Expansion Project Re-Started

After having a 14 month project suspension during which the mine was sold to the Chinese Minmetals Group, the Sepon Expansion Project has been re-started. Delkor is the supplier of the CCD thickeners and clarifier, 8m x 24m and 1m x 35m units. Sepon is expecting the clarifier to be cold

25 April 2010

Acquisition Enhances Range

The incorporation of solid and liquid separation company Delkor Global into Bateman Engineered Technologies (BET), the specialised equipment supply and bulk materials handling division of the Bateman Engineering Group, has enhanced the quality of products and knowledge base available to clients b

25 April 2010
