Ancor Loc Australia

Earth and Ground Anchor Systems for the Mining Industry

Unit 2, 61-63 Shearson Crescent
Mentone, Vic 3194,
Fax Number

Ancor Loc Australia is a distributor of earth and ground anchor systems for the mining industry.

We offer Duckbill, Manta Ray and Sting Ray percussion-driven earth anchors, which act as a toggle bolt in the soil.

They are environmentally friendly and can bear loads achieve loads from 125kg to 35t for a variety of applications. We also distribute Williams Ground and Rock anchors for complex anchoring needs.

Safe and environmentally friendly anchoring solutions for the mining industry

Duckbill anchors are a patented labour and time-saving device that works similar to a toggle bolt in undisturbed soil.

They are percussion-driven into the ground without holes, digging or concrete, providing a safe and environmentally sensitive installation.

An upward pull on the anchor tendon rotates the Duckbill into a perpendicular lock position in undisturbed soil.

Duckbill anchor systems offer an effective, lightweight and economical solution to any anchoring issue.

Heavy-duty anchors with large holding capacities

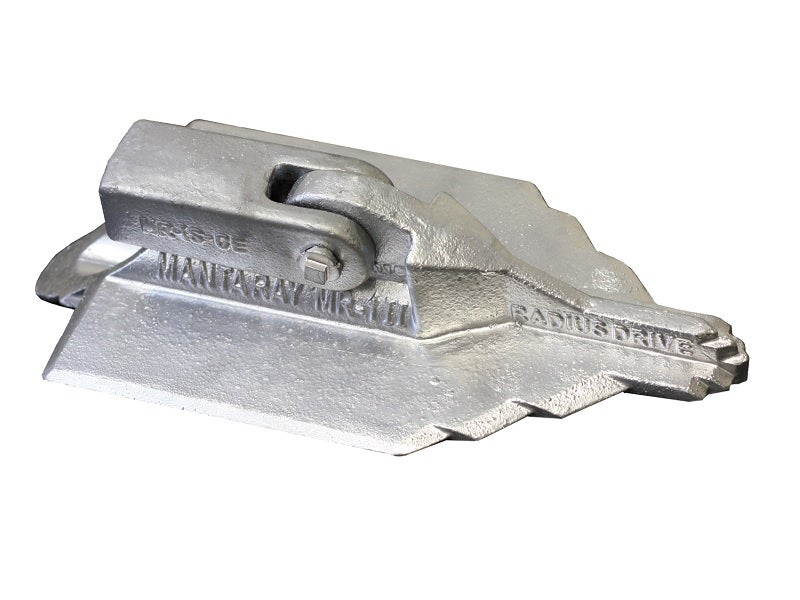

Manta Ray anchors are the heavy-duty equivalent of the Duckbill and work on the same principles. The main difference is that this anchor has a solid threaded tendon rather than wire rope.

The Manta Ray compacts the soil around it to create an ecological and secure solution.

The anchors are driven by conventional hydraulic or pneumatic equipment. Once driven to the proper depth, an upward pull on the anchor tendon rotates the Manta Ray into a perpendicular lock position in undisturbed soil. Holding capacity can be measured by a gauge, each anchor is immediately proof loaded to the exact capacity required.

Tipping plate soil anchors for mine excavation shoring

Stingray earth anchors are the largest of our tipping plate soil anchors with a maximum working load of 35t.

The anchor is driven to the required depth and the driving steel removed before the anchor is tipped and load locked with our Anchor Locking Kit or a hollow jack, giving each anchor an immediate proof test.

Stingray earth anchors are suitable for applications with heavy capacity requirements such as civil construction, excavation shoring and tiebacks.

High-quality, US-manufactured anchoring equipment

The majority of Williams Form Engineering high-quality products are designed and manufactured in the US. They are also supported by engineered shop drawings, calculations, installation and testing equipment.

Due to the wide variety of ground anchors, including spinlock, bail, sledge drive and grout bonded anchors, Ancor Loc Australia will order in anchors specifically produced for your requirements.

All anchors will arrive with mill certificates for their point of origin.

About Ancor Loc Australia

Ancor Loc Australia has been a supplier of earth anchor systems for more than 15 years.

Its products have been proven in global industries such as utilities, civil construction, landscaping, horticulture, erosion control and mining.

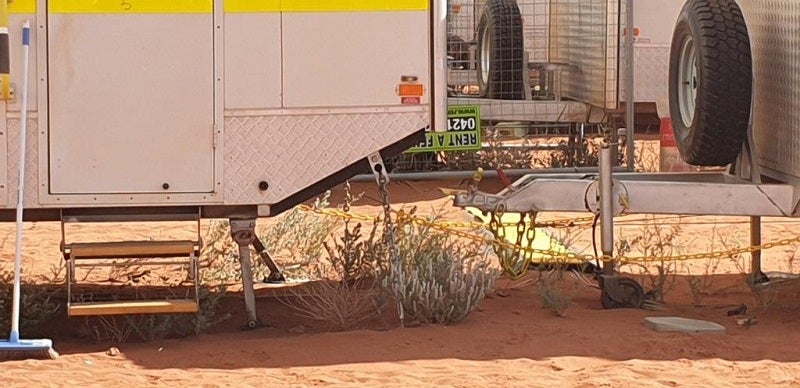

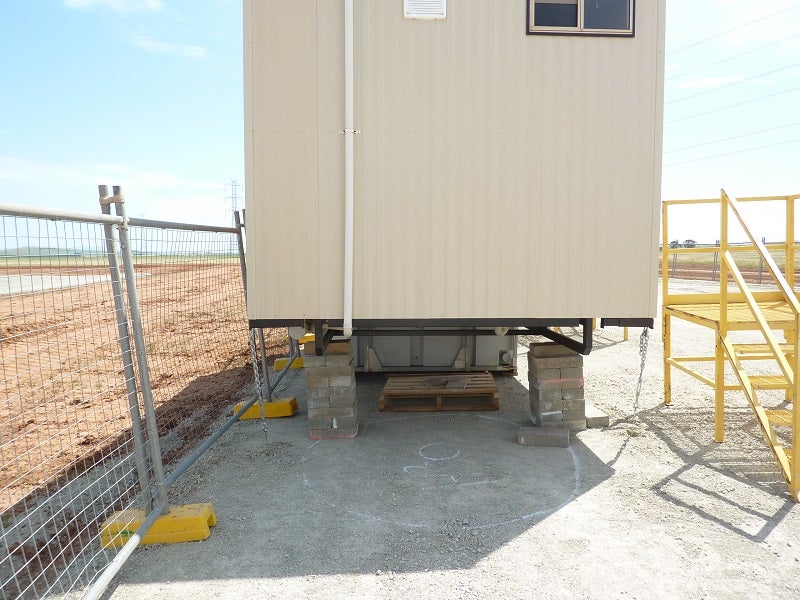

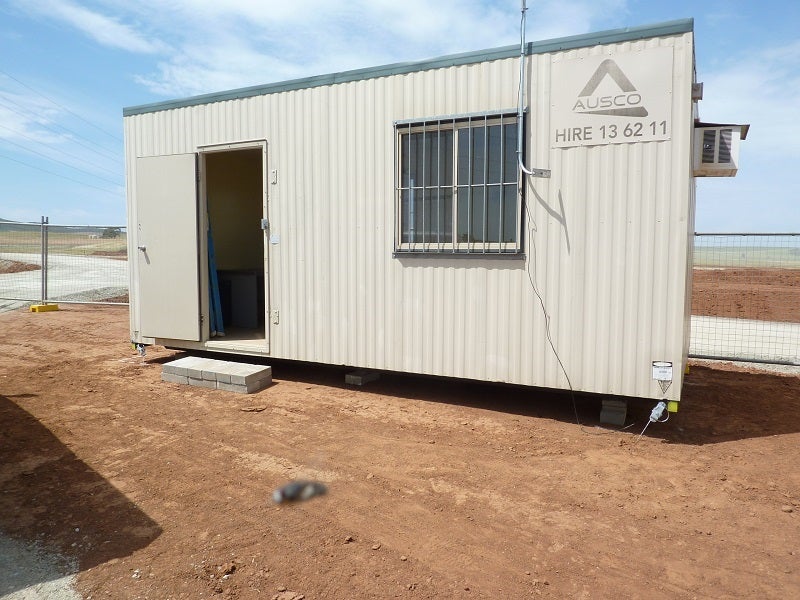

Duckbill Anchors for Portable Buildings and Tie Downs

Saving time and labour, patented DUCKBILL® earth anchors work like a toggle bolt in soil. They are driven into the ground with no holes, no digging, and minimal soil disturbance creating a safe and environmentally sensitive installation.

STINGRAY Earth Anchors

STINGRAY earth anchors are driven tipping plate soil anchors for reaction of tensile loads.

Williams Form Engineering Corp

Ancor Loc Australia proudly promotes and distributes Williams Form Engineering products throughout Australia. Williams Form Engineering Corp has been a leader in manufacturing quality products for the Construction and Fastener Industries for over 80 years.

Portable Anchoring Systems

With the current cyclone season upon us in Far North Queensland and surrounding regions, Ancor Loc Australia has been inundated with enquiries about their fully tested portable anchoring systems.

Ancor-Loc Australia

Unit 2, 61-63 Shearson Crescent Mentone, Vic 3194
